Extech DV25 Dual-Range AC Voltage Detector with Flashlight
Extech DV25 Dual-Range AC Voltage Detector with Flashlight

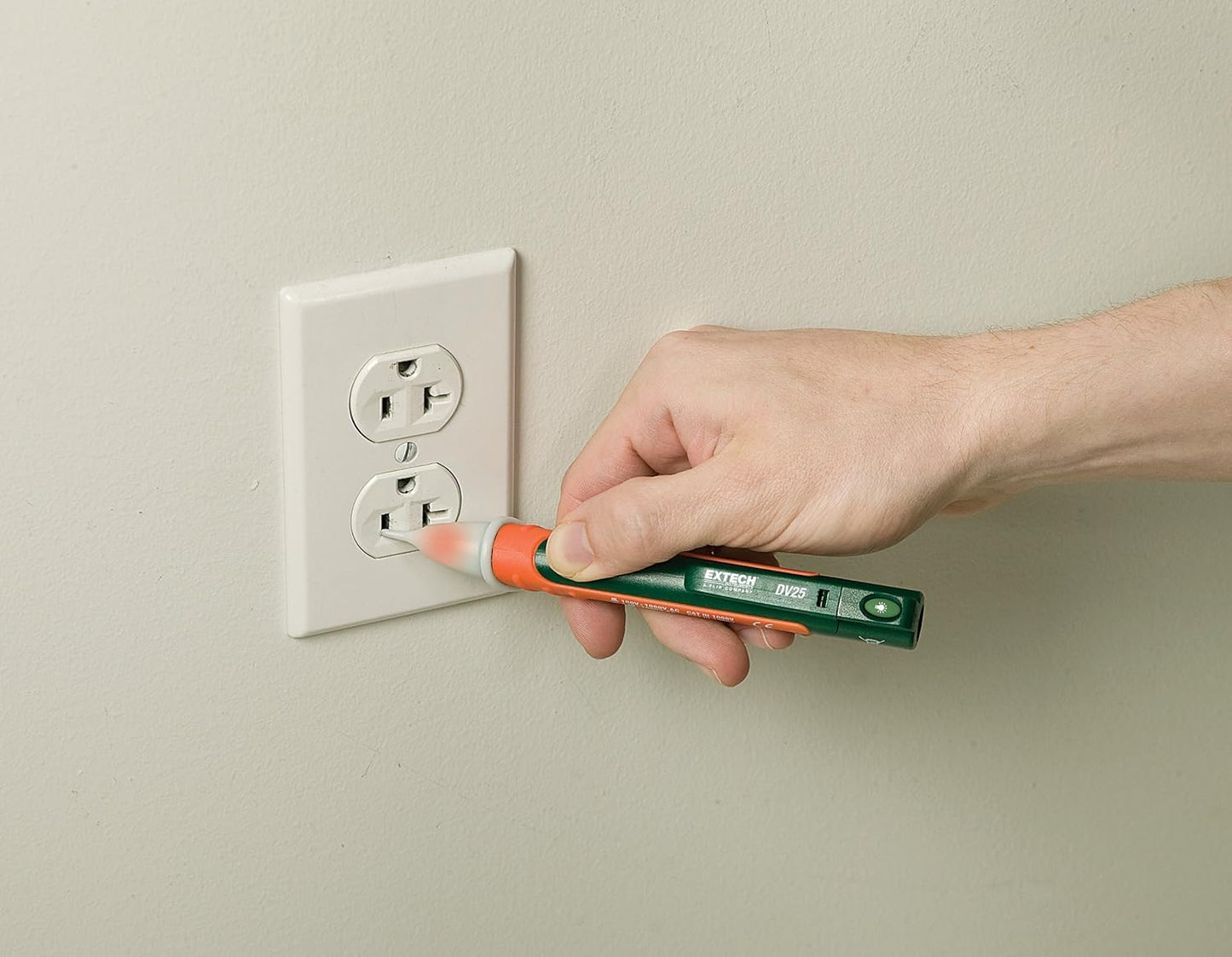

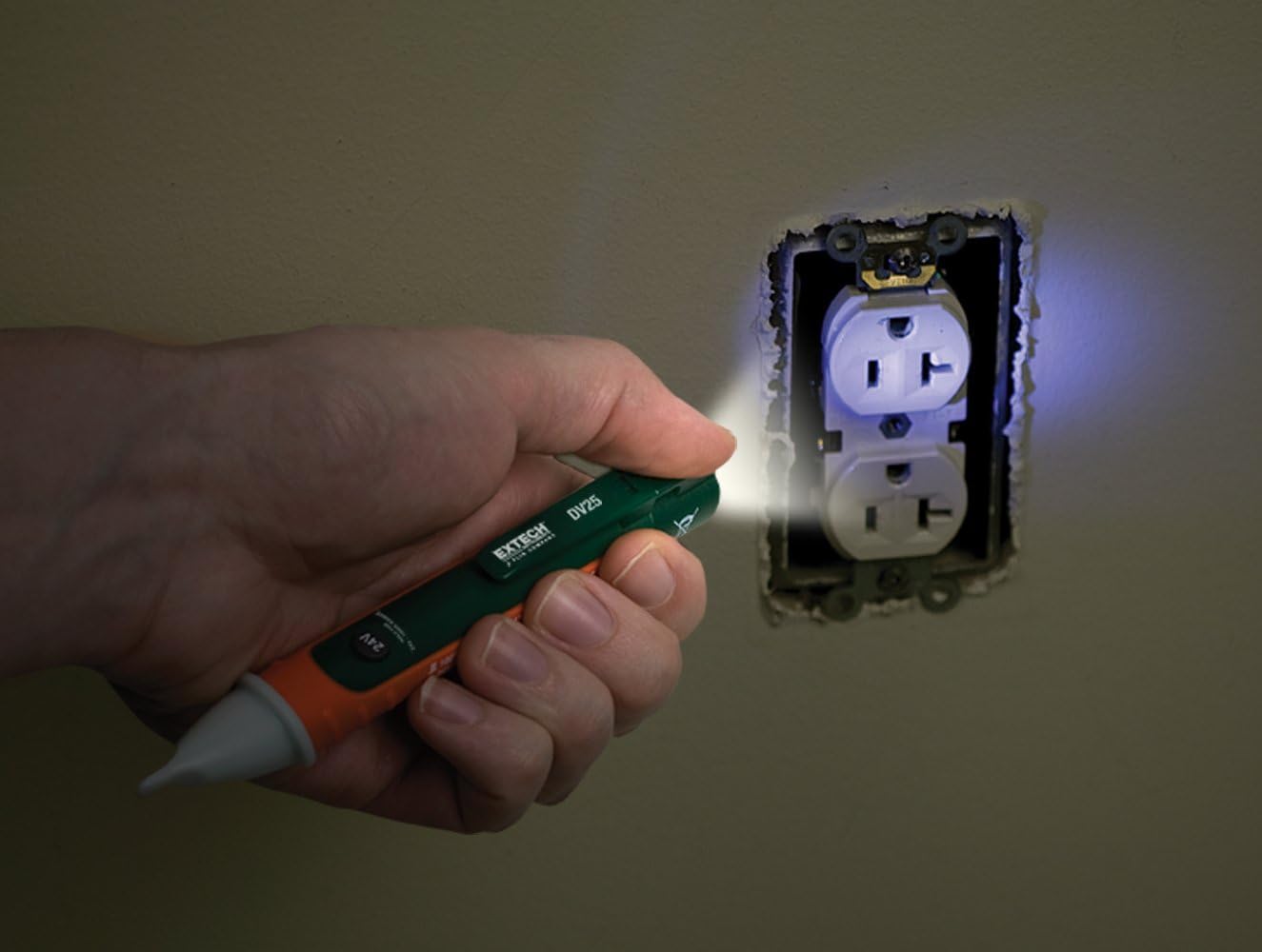

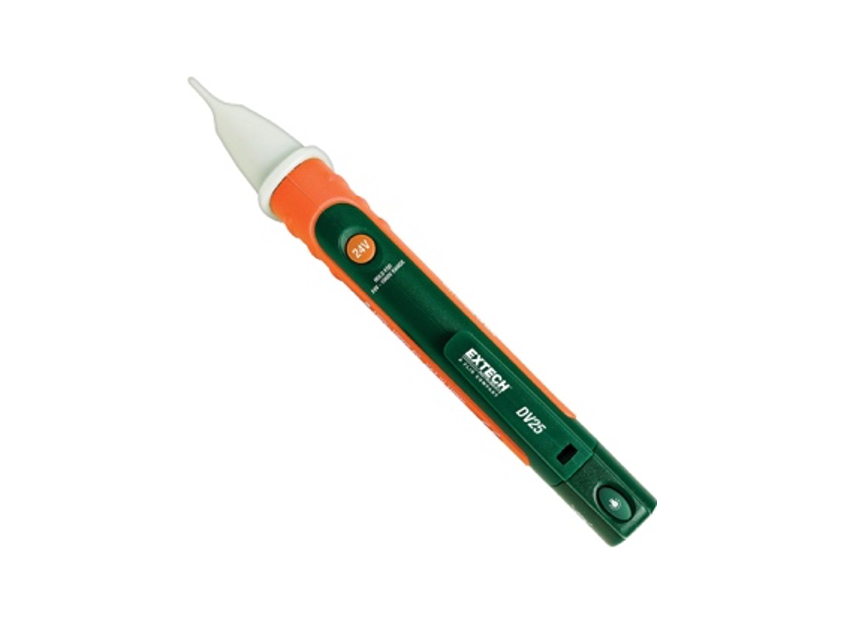

Extech DV25 Dual-Range AC Voltage Detector with Flashlight For Use On 50/60Hz Circuits, CAT IV-1000V Safety Rating, Audible and Visual Voltage Indication, Rugged Double-molded Housing Model DV25 is a dual range NCV detector that combines two models into one. Low range measures down to 24 Volt and the high range measures up to 1000 Volt. Audible and visual indication, rugged double molded housing, and a bright built-in LED flashlight. Complete with 2 x AAA batteries. Key Features Non-contact detection of AC Voltage in 2 ranges: 24 to 1000VAC/100 to 1000VAC CAT IV-1000V safety rating For use on 50/60Hz circuits Audible and Visual voltage indication Built-in bright flashlight with On/Off button Rugged double-molded housing Tip fits into outlets or against wire insulation testing Compact size with pocket clip Specifications Voltage Sensitivity: 100V to 1000V AC, 50/60Hz; 24V to 1000V AC, 50/60Hz Detection distance: <0.2" Operating Temperature: 32 to 122F (0 to 50C) Storage Temperature: -4 to 140F (-20 to 60C) Altitude: Operating below 2000 meters Relative Humidity: 80% up to 31C, decreasing to 50% at 50C Battery: 2 AAA batteries Dimensions: 6.25"x1" (159x25mm) Weight: 1.5oz (42g).
